Atmospheric Valve Packers

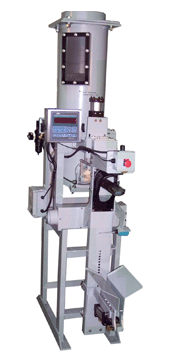

A660 ELECTRONIC ATMOSPHERIC VALVE PACKER

The A660 ELECTRONIC ATMOSPHERIC VALVE PACKER is designed to simultaneously fill and weigh multi-wall or plastic valve bags with powdery, fine granular materials that can be fluidized with air pressure. This machine is most efficient for packing fine, uniform mesh size materials. Low pressure air enters the pressure chamber and stack of the supply bin through a fluidizing air pad. Head pressure from the supply bin causes the material to flow into the bag when the cut-off tube is opened.

a660

Standard Features

  • Platform bag chair
  • P.C. Digital controller for accurate weighing, user friendly
  • Full bottom opening
  • Bulk and dribble dual filling speeds
  • Dust collection connection

Optional Features

  • Stainless steel construction
  • Power bag discharge
  • Automatic start switch
  • And more

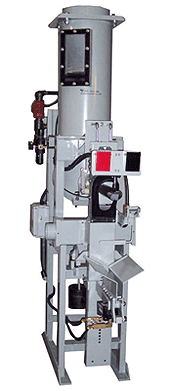

A650 MECHANICAL ATMOSPHERIC VALVE PACKER

The A650 MECHANICAL ATMOSPHERIC VALVE PACKER is designed to provide an economical alternative to the A660 ELECTRONIC ATMOSPHERIC VALVE PACKER by using a scale beam with counter weights and a proximity switch cut-off.

a650

Standard Features

  • Platform bag chair
  • Full bottom opening
  • Spring loaded pinch tube cut-off
  • Proximity switch cut-off signal
  • Dust collection connection

Optional Features

  • Stainless steel construction
  • Power bag discharge
  • Automatic start switch
  • And more
